Wire it up!

It's time to wire up the input, in this example we are going to use a button but the Input1 will work with many different types of sensors.

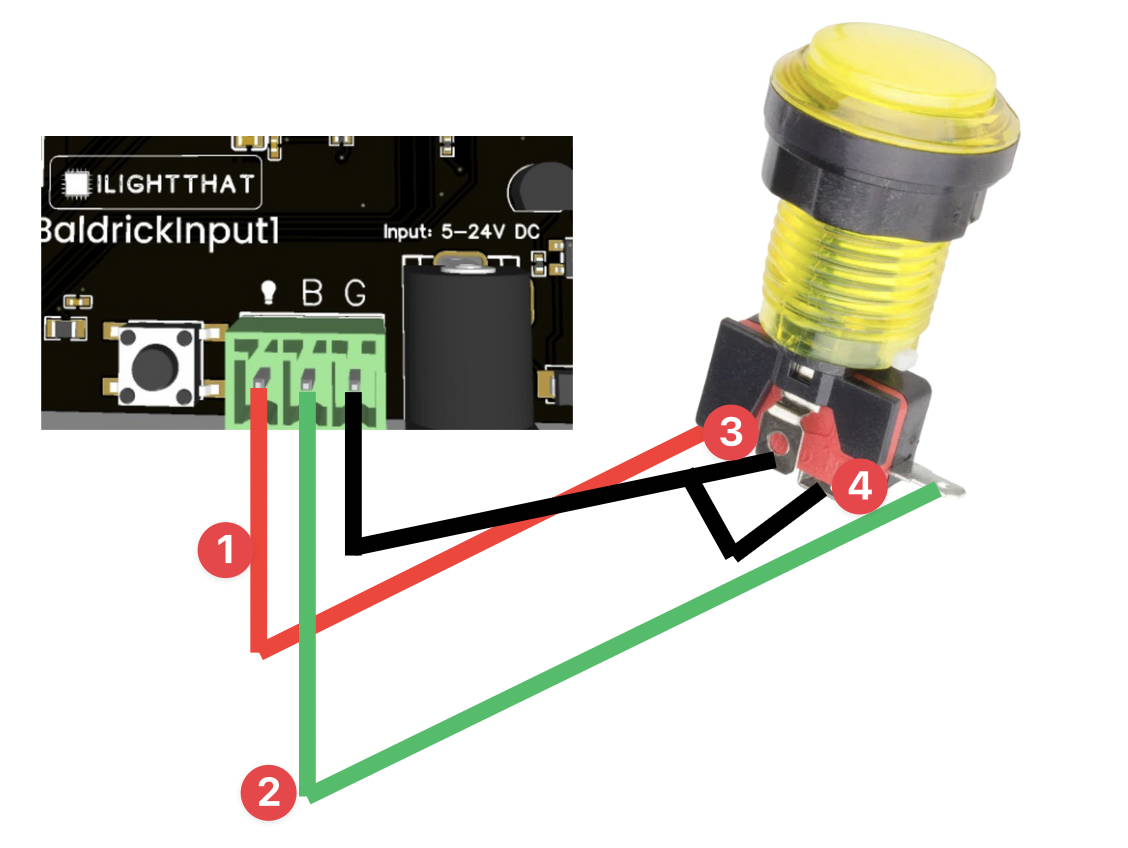

Button Wiring

  1. Lamp This should be attached to the + side of your button LED (if not using a button with an LED this can be ignored)
  2. Button This should be attached to the switch section of the button or input
  3. Ground button this should be attached to the ground section of the button or input
  4. Ground lamp this should be attached to the ground section of the lamp (normally we just link the ground of the button to this)
