Stats

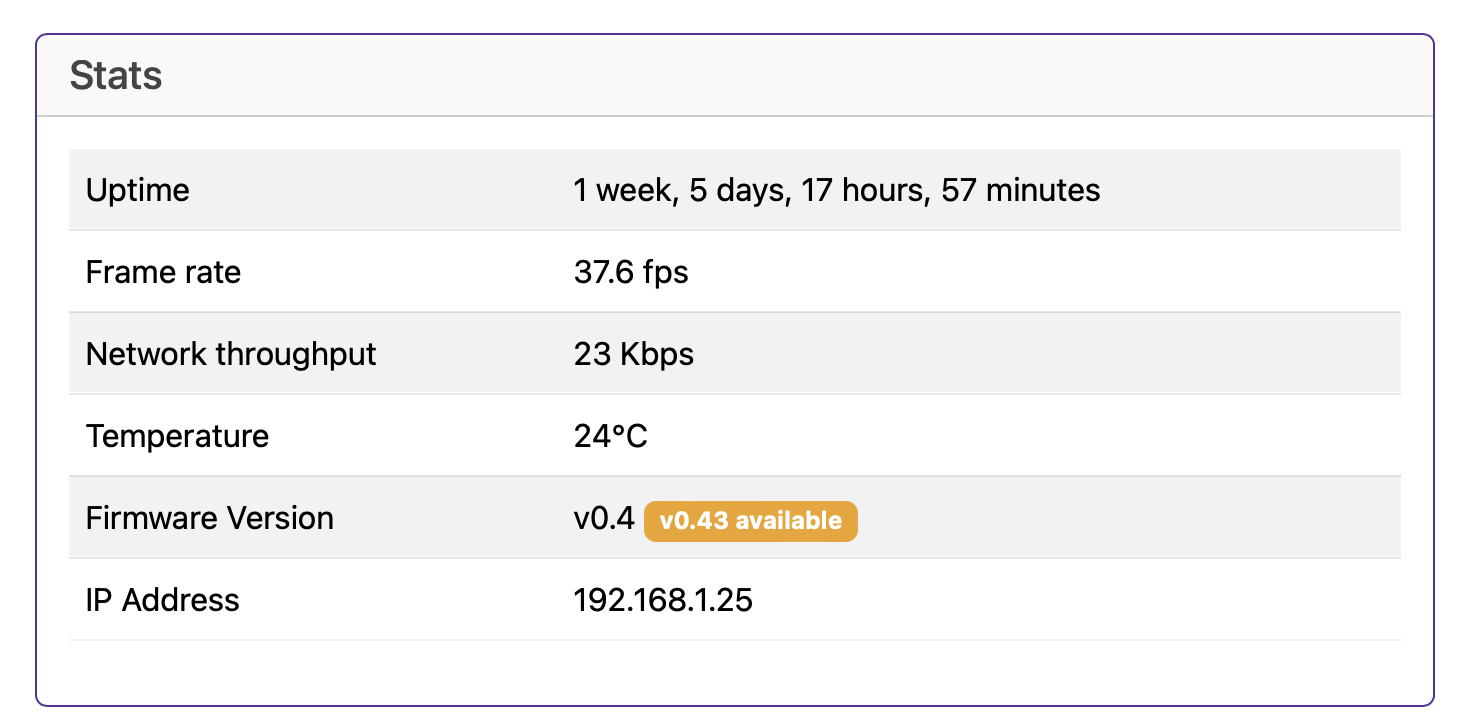

Baldrick8 Web Interface Stats

The Stats board gives you a heads up as to what's going on with your controller

Uptime​

Tells you how long your controller has been powered on (this is useful in June to remind you that you forgot to turn it off over christmas)

Frame Rate​

This lets you know what the FPS (Frames Per Second) the controller is currently outputting

Network Throughput​

Like the FPS, this gives you an indication of the volume of network traffic passing through the controller, this should help with debugging

Temperature​

With a sensor next to the Ethernet connector, this gives you an indication of the board temperature (in Celsius) because water freezes at 0, not 32.. how does that make sense?

Generally, PCBs and components are good for -40 to +85°C, Anything below 60°C on this board is fine and nothing to worry about. If the temp is above that, try blowing on it like you would a hot chip out of the oven.

Firmware Version​

The BaldrickDMX is pretty new in the world of controllers and we've got a LOT of features left to add, this will let you know your current version and if there is a version to upgrade to.

(clicking the new version will upgrade it in place then restart the controller)

IP Address​

It would be pretty silly to have a controller information box without showing you the IP Address of the controller wouldn't it? That would be like launching a controller without being able to manage the networking.
