Test Mode

Test Mode allows you to, well, test the board.

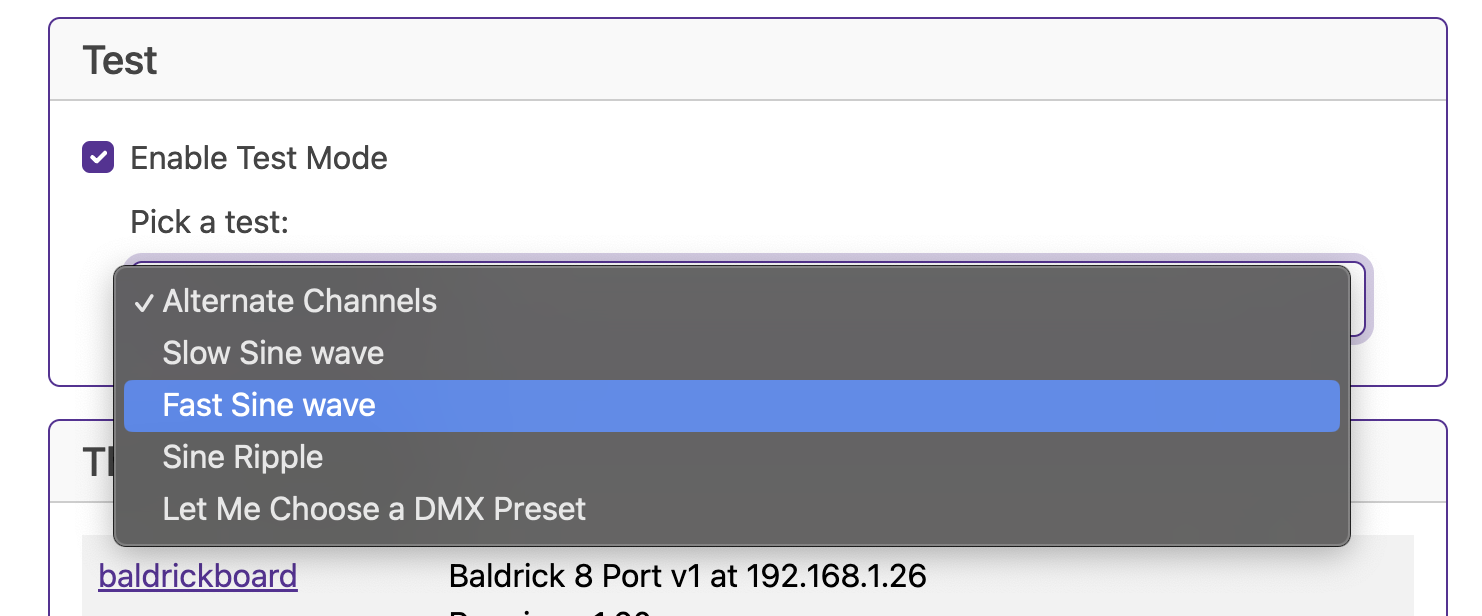

Baldrick8 Web Interface test

Let's break these down

Alternate Channels​

Slow Sine Wave​

All channels start at zero. They all go to 255, and all back to zero. If you graphed the value of any given channel over time, it would be a sine wave.

It does this slowly.

Fast Sine Wave​

All channels start at zero. They all go to 255, and all back to zero. If you graphed the value of any given channel over time, it would be a sine wave.

It does this faster.

Sine Ripple​

Plot channel numbers on x axis against values on y and you'll get a sine wave. That sine wave moves over time, so each channel moves between 0 and 255 and back.

It does this medium speed.

DMX Preset​

Allows you to select a DMX preset that you've created as a test mode
