Baldrick Dimensions

Baldrick Boards are categorised into two board sizes small and medium, this means that we don't have to keep making new mounts and accessory sizes as we create new boards.

Mounting holes in all our boards are M3

Small​

We've designed the Small so it can be hidden inside a small junction or project box.

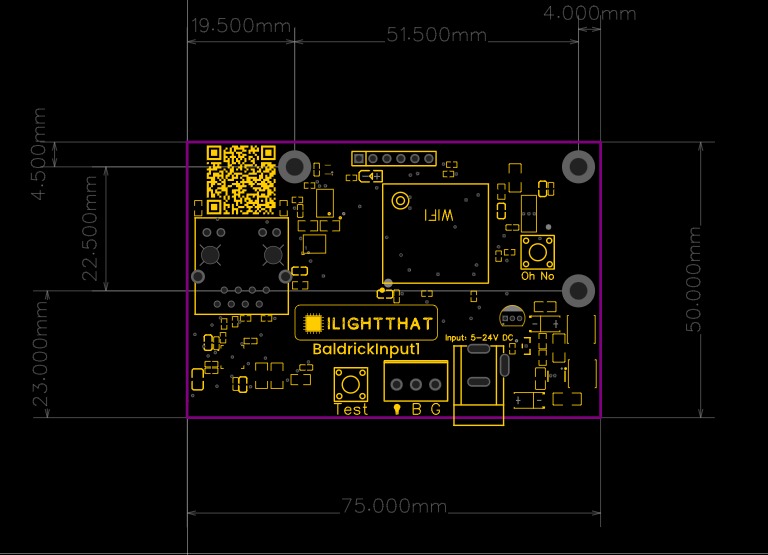

Small Baldrick Board Dimensions

Medium​

We based the dimensions of the Medium Baldrick boards to match similar boards already in the market so you can reuse mounts and 3D printed elements.

The Baldrick community have created an amazing range of mounts and STLs that you can print and use today.

The board footprint is just 117mm by 74mm.

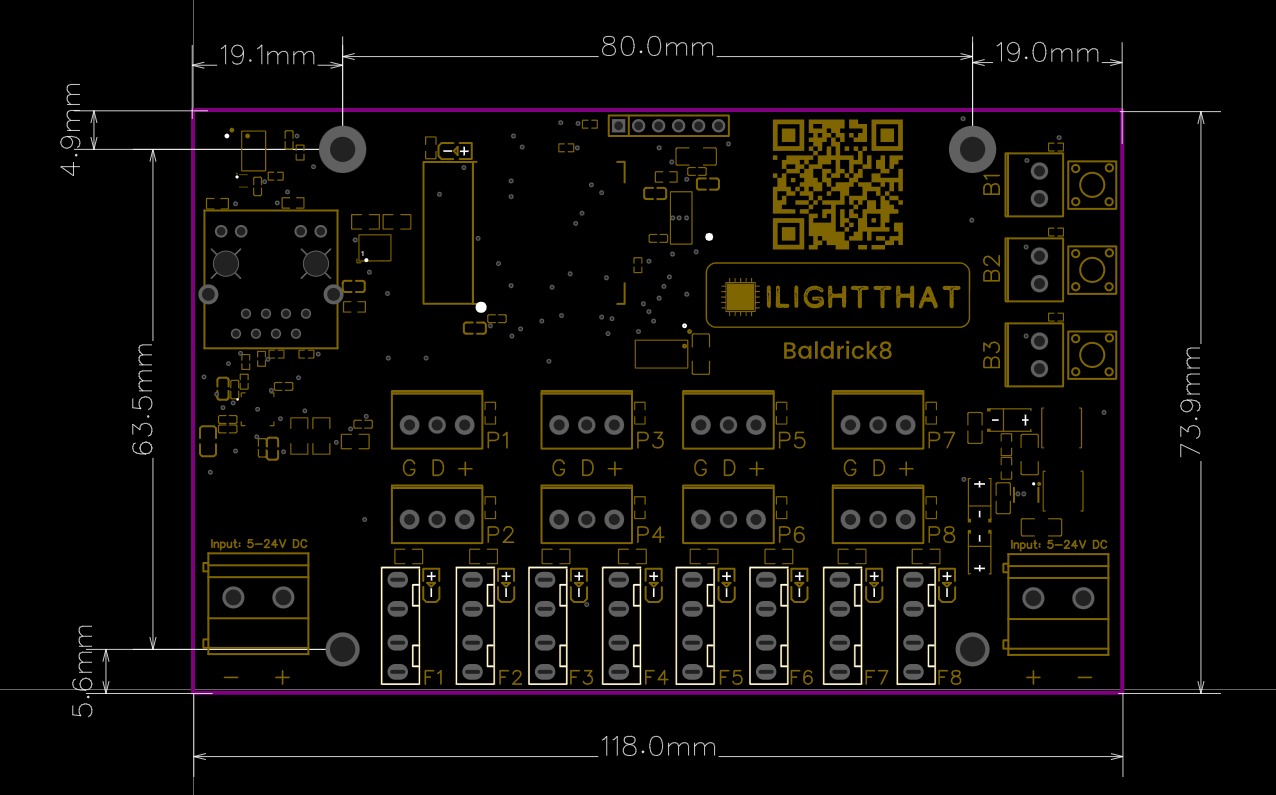

Medium Baldrick Board Dimensions

Once again we ask DO NOT ENLARGE THE MOUNTING HOLES
